Liquid nitrogen dosing

Precision LN₂ dosing technology for PET pressurization, inerting, oxygen reduction and other packaging applications.

CHART INDUSTRIES

Chart LN₂ dosing systems in operation

See how precision liquid-nitrogen dosing technology integrates into a production line.

CHART INDUSTRIES

Four key liquid nitrogen dosing applications

Choose the application that matches your product and download the brochure for Chart LN₂ dosing systems.

01

Preservation

A precise LN₂ dose is introduced immediately before sealing. The nitrogen vaporizes and displaces oxygen from the headspace, supporting product quality and shelf life.

Applications: beer, wine, oils, condiments and oxygen-sensitive products.
02

Pressurization

The dosed LN₂ rapidly vaporizes inside the sealed package and creates controlled internal pressure, enabling lighter and more stable PET bottles and cans.

Applications: water, juices, teas, energy drinks and hot-filled products.
03

Freezing

Liquid nitrogen rapidly surface-freezes the product before it enters a tunnel or spiral freezer, helping preserve shape, texture and appearance.

Applications: ice cream and products requiring stability during packaging.
04

Modified Atmosphere Packaging (MAP)

A larger LN₂ dose is introduced immediately before sealing to reduce oxygen and gaseous-nitrogen consumption.

Applications: coffee, nuts, botanicals, powders and food products.
Download general LN₂ dosing catalogue ↓

CHART INDUSTRIES

Case studies & application brochures

Explore proven liquid-nitrogen dosing applications and download the official Chart application-focus brochures.

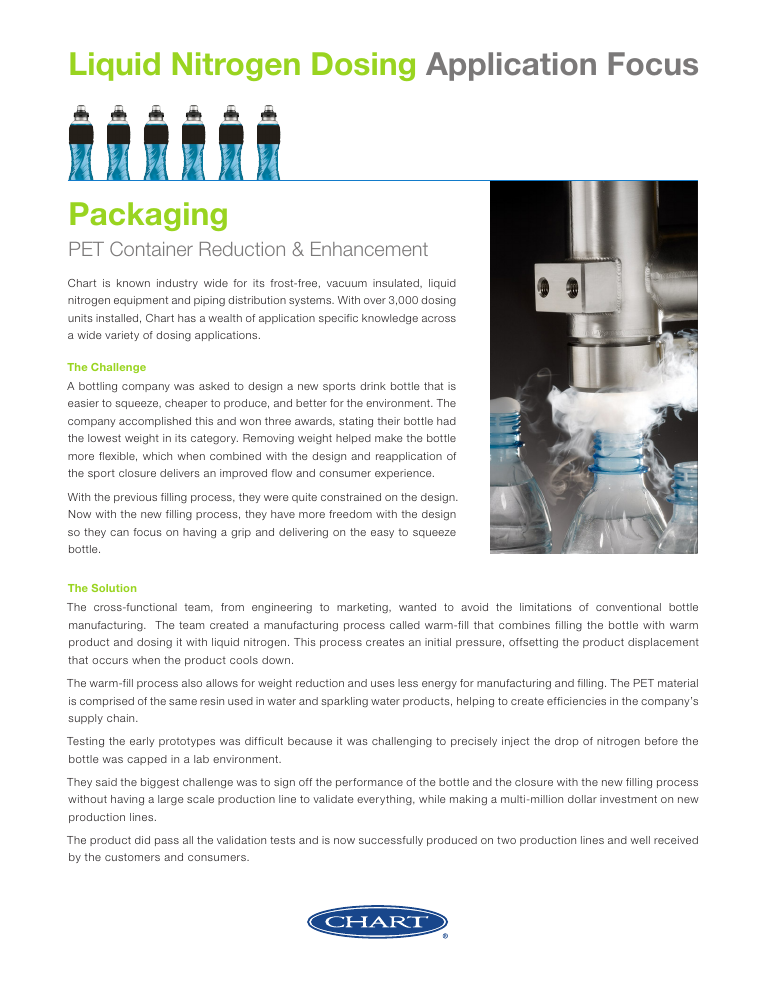

Chart lightweight PET nitrogen dosing brochure
CASE STUDY

Lightweight PET packaging

LN₂ pressurization supports lighter bottles, greater package rigidity and reduced paneling after hot or ambient filling.

Download brochure ↓

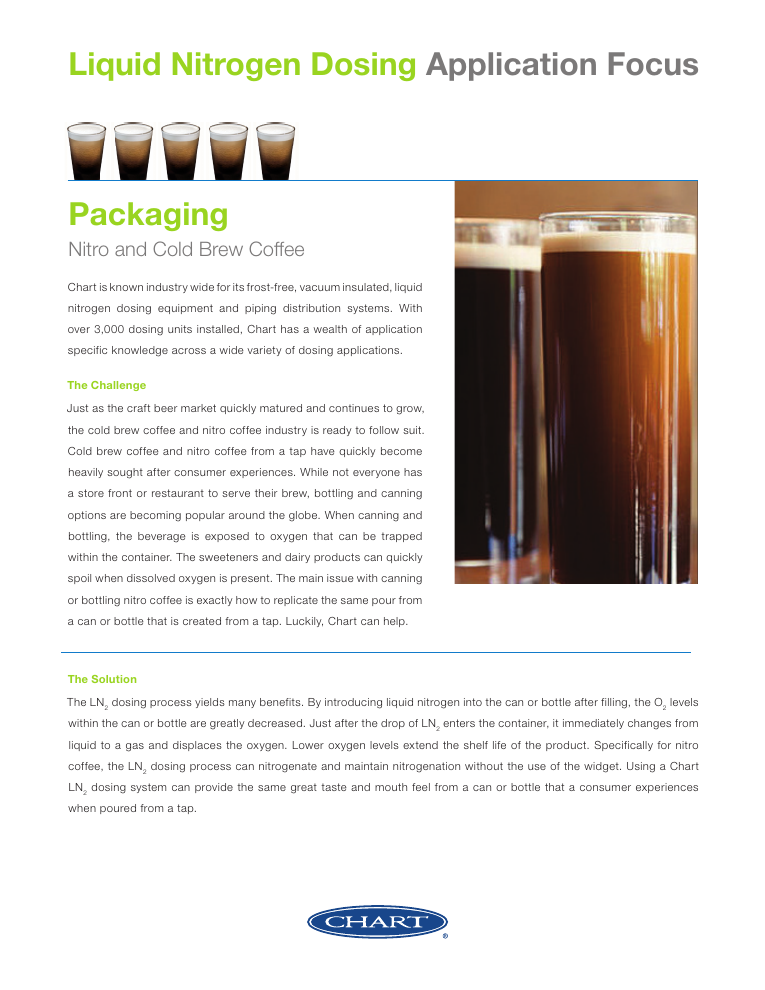

Chart nitro and cold brew coffee dosing brochure
APPLICATION FOCUS

Nitro & cold-brew coffee

Precision dosing supports oxygen reduction, package pressure and the characteristic nitrogenated cascade and mouthfeel.

Download brochure ↓

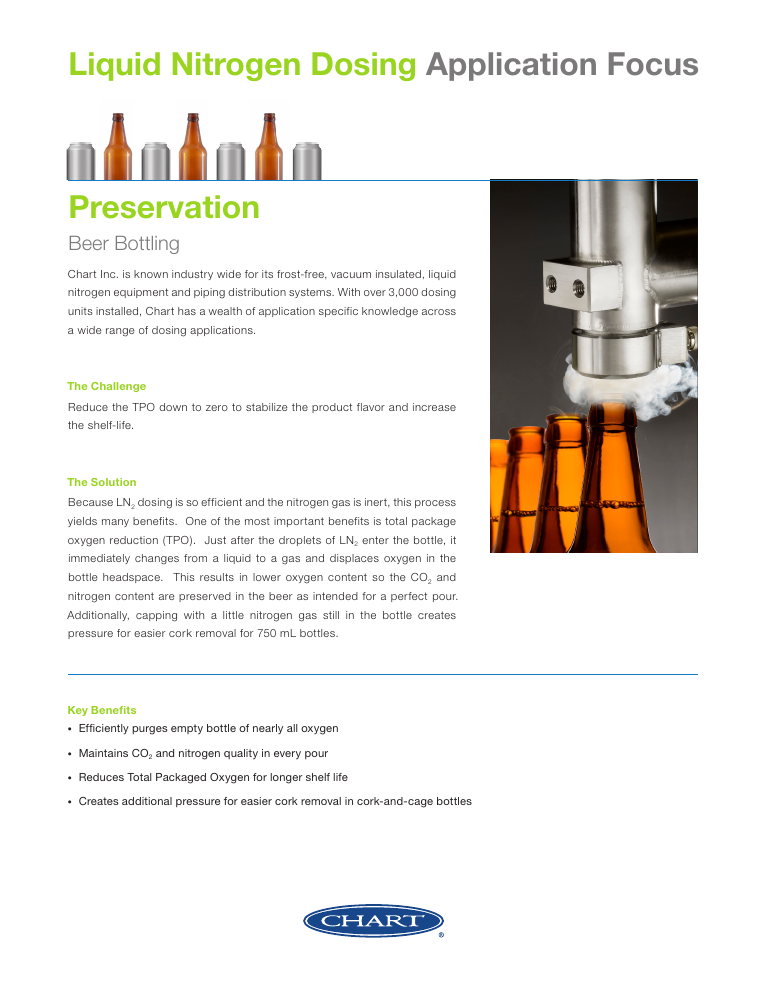

Chart nitrogen dosing for beer brochure
APPLICATION FOCUS

Nitrogen dosing for beer

LN₂ dosing can purge oxygen before sealing and support package stability while protecting flavour and shelf life.

Download brochure ↓

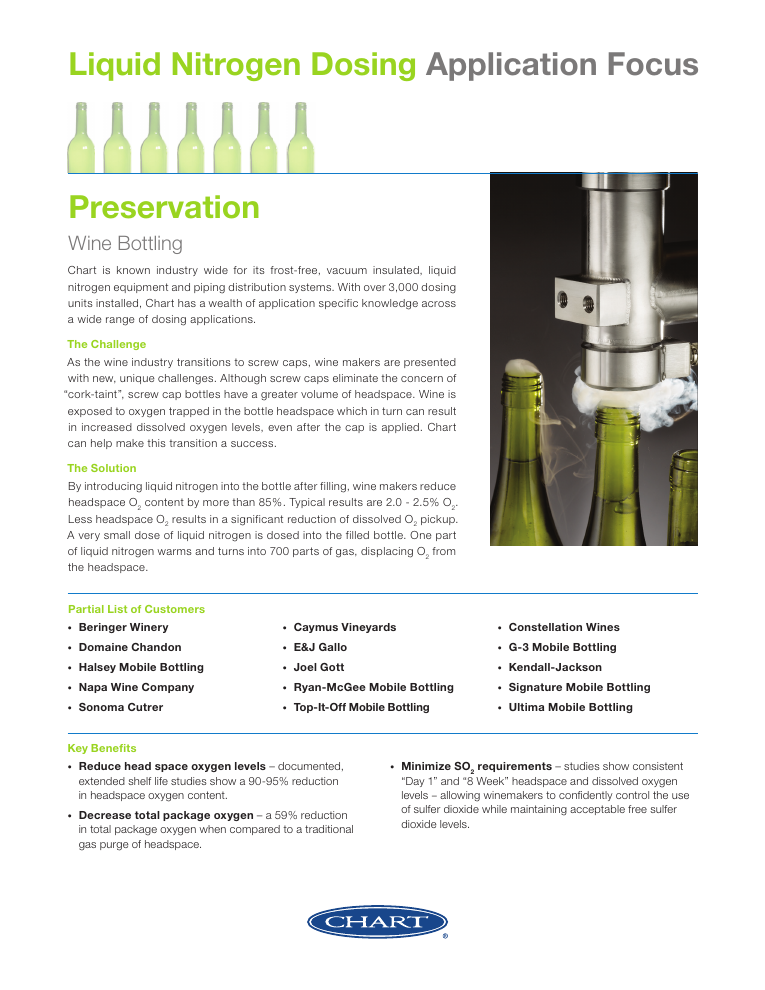

Chart nitrogen dosing for wine brochure
APPLICATION FOCUS

Nitrogen dosing for wine

A controlled dose immediately before closure reduces headspace oxygen and supports preservation without continuous gaseous-nitrogen purging.

Download brochure ↓

CHART INDUSTRIES

Full Equipment Solution

From initial design through complete after-sales support, each system is engineered and built around customer requirements for reliable operation and peak efficiency.

  1. 1
    Storage

    A complete range of LN₂ cryogenic cylinders, MicroBulk systems and bulk tanks.

  2. 2
    Withdrawal

    A vacuum-insulated valve minimizes heat leak and gas boil-off while preventing unsafe ice build-up.

  3. 3
    Vacuum Insulated Pipe

    The foundation for low heat loss and long-term system integrity.

  4. 4
    Phase Separator

    Provides a continuous, on-demand supply of high-quality, low-pressure LN₂.

Discuss your LN₂ dosing application.
